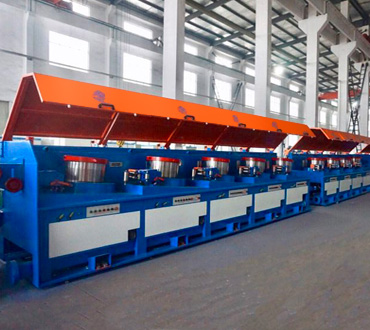

Straight Line Drawing Machine



Items Unit Type
1200 900 560 400
Capstan dia mm 1200 900 560 400
Draw passage time 5~8 5~9 8~10 10
Material strength Mpa 1300 ≤1300 ≤1250 ≤1250
Max incoming dia mm 18.0~14.0 14.0~9.0 6.5~4.0 3.8
Min outgoing dia mm 9.0~6.0 6.0~4.0 2.5~1.5 0.7
Total compressibility % 82~85 82~85 84~86 89.4
Average partial compressibility % 20 20 21 20
Wire drawing line speed m/s 3~6 4~8 8.0~12.0 16~18
Single motor power kw Frequency 110-160 Frequency 50-100 Frequency 22-45 Frequency 11-15
Materials suitable for latin America Welding rod,wire(gas-wire,submerged arc welding wire,flux-cored wire);wire(high,medium and low-carbon wire,stainless steel wire,prestressed steel wire tire,hose wire,spring steel,steel cord etc.);wires Lines(aluminum wire package,copper,lvsi,etc.);alloy wire and other metal wire.
